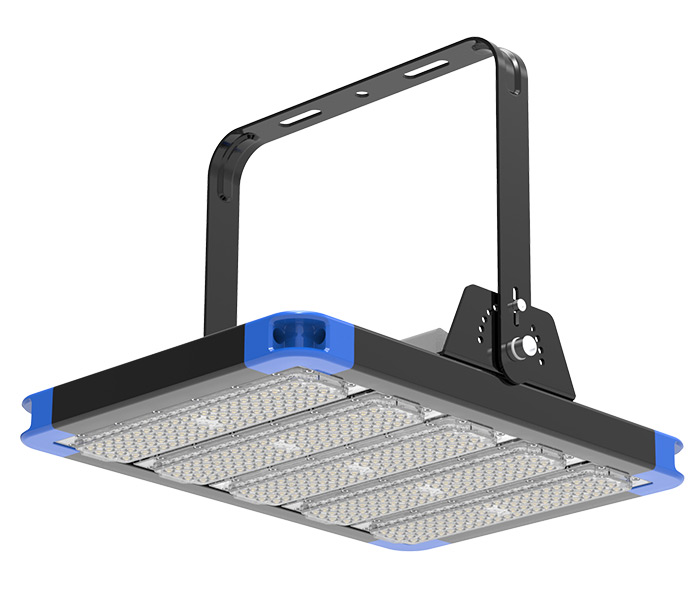

  • LED Tunnel Light 250W
  • LED Tunnel Light 250W
  • LED Tunnel Light 250W
Product name:

LED Tunnel Light 250W

Model:TU01-0250-NP-CC80

Power:Mean Well HLG-240-48A

Luminous flux:35000LM

Lighting Effects:140 lm/w

LED Brands:Luminous 3030

Input Voltage(V):AC85-305V

LED Qty:420 PCS

Beam Angles:10°,25°,45°,60°,90°

IP Class:IP66


Share

Application:

.Tunnels

.Workshops

.Large warehouses

.Stadiums

.Metallurgy

.Factories

.Engineering construction


Paramenter:


Output Power:250W
Frequently50/60Hz
Power factor:>0.95
LED Qty/ Brands :420 pcs /Philips SMD3030
Lighting Effects:140LM/W(±5%)
Color Temperature(CCT):2700-6500K
Color Rendering Index(CRI):>80
Operation Temperature:-30~+45℃
IP Class:IP66
Wattage:50000Hr
 Input wires:Brown wire(L)
Yellow wire(G)
Green wire(N)
G.W.:7.3KG
Carton Dimension:340mm*120mm*480mm


Installation:


LED tunnel light 250W




Installation requirement:


1. Please prepare two sets of bolts to install the light;

2. Power off before installation;

3. Make sure the installed surface can endure the weight of light, and fix the light on the installed surface securely(according to installation diagram);

4. Connect light wire to power wire, seal the joint with insulation.


Drawing:


LED tunnel light 250W



Exploded view:


LED tunnel light 250W



Packaging:

250W
