  • LED Tunnel Light 200W
  • LED Tunnel Light 200W
  • LED Tunnel Light 200W
Product name:

LED Tunnel Light 200W

Model:TU-0200-NP-CC80

Power:Mean Well  HLG-185-48A

Luminous flux:28000LM

Lighting Effects:140 LM/W

LED Brands:Luminous 3030

Input Voltages(V):AC85-305V

LED Qty:336 PCS

Beam Angle:10°,25°,45°,60°,90°

IP Class:IP66


Share

Application:

.Tunnels.

Workshops

.Large warehouses

.Stadiums

.Metallurgy

.Factories

.Engineering construction


Paramenter:


Output Power:200W
Frequently50/60Hz
Power factor:>0.95
LED Qty/ Brands :336 pcs /Philips SMD3030
Lighting Effects:140LM/W(±5%)
Color Temperature(CCT):2700-6500K
Color Rendering Index(CRI):>80
Operation Temperature:-30~+45℃
IP Class:IP66
Wattage:50000Hr
 Input wires:Brown wire(L)
Yellow wire(G)
Green wire(N)
G.W.:6.3KG
Carton Dimension:340mm*120mm*400mm

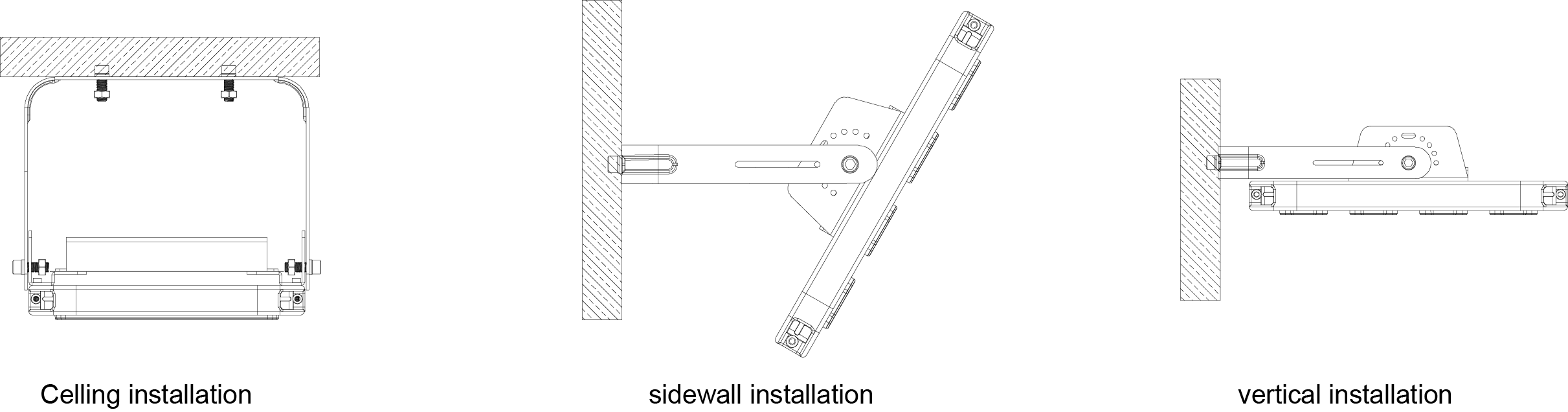

Installation:



LED tunnel light 200W



Installation requirement:


1. Please prepare two sets of bolts to install the light;

2. Power off before installation;

3. Make sure the installed surface can endure the weight of light, and fix the light on the installed surface securely(according to installation diagram);

4. Connect light wire to power wire, seal the joint with insulation.

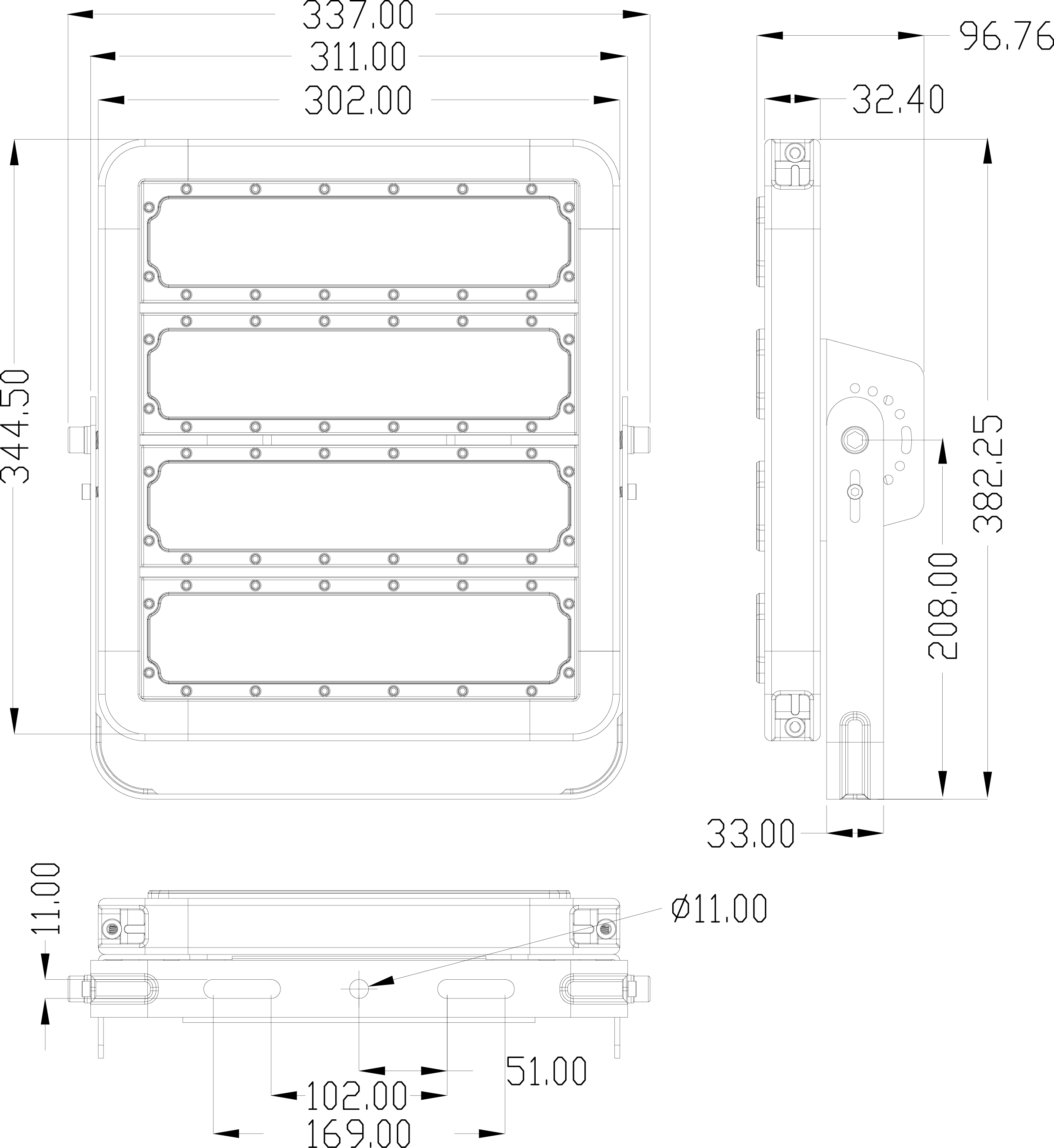

Drawing:


LED tunnel light 200W

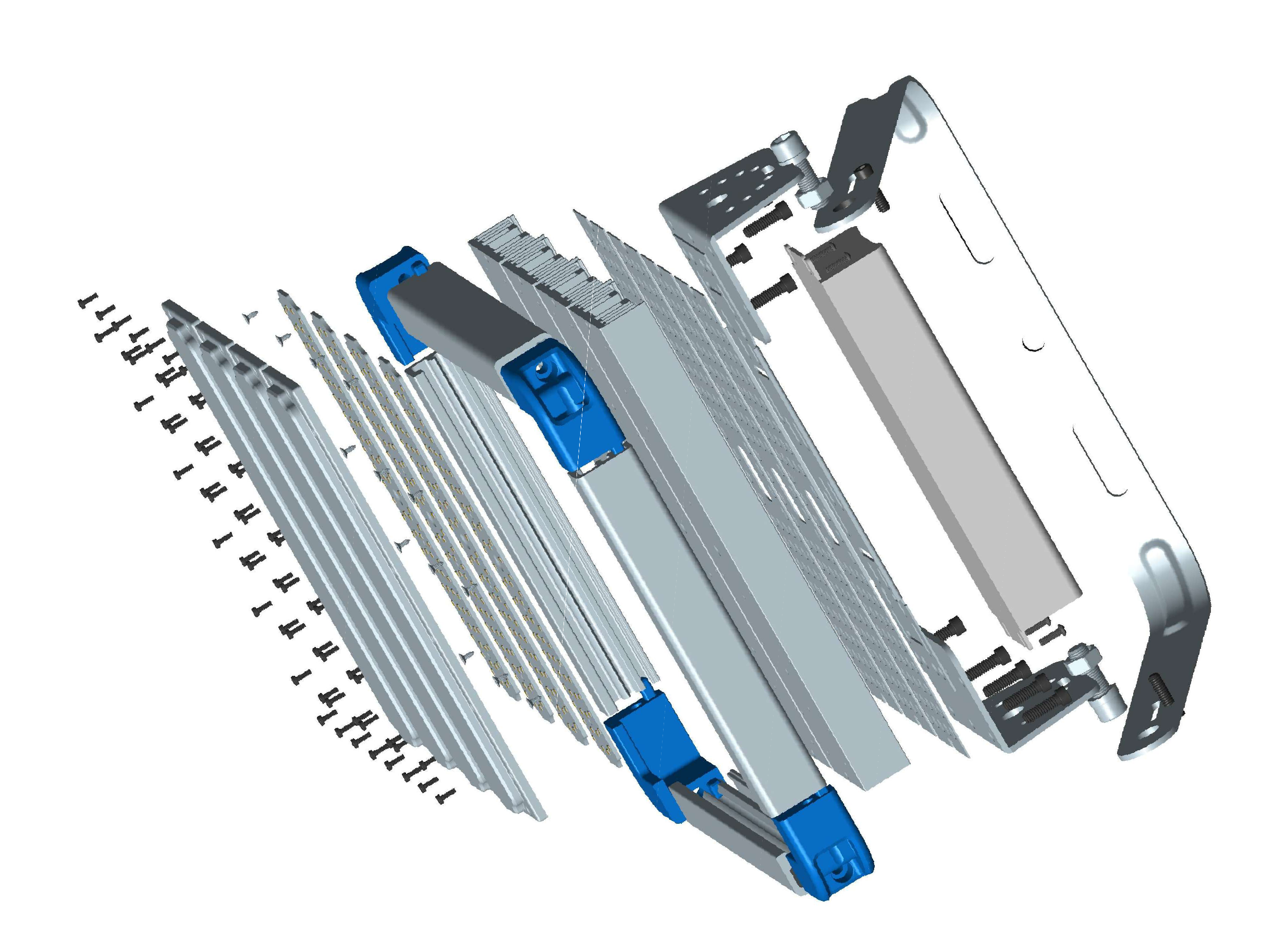

Exploded view:


LED tunnel light 200W

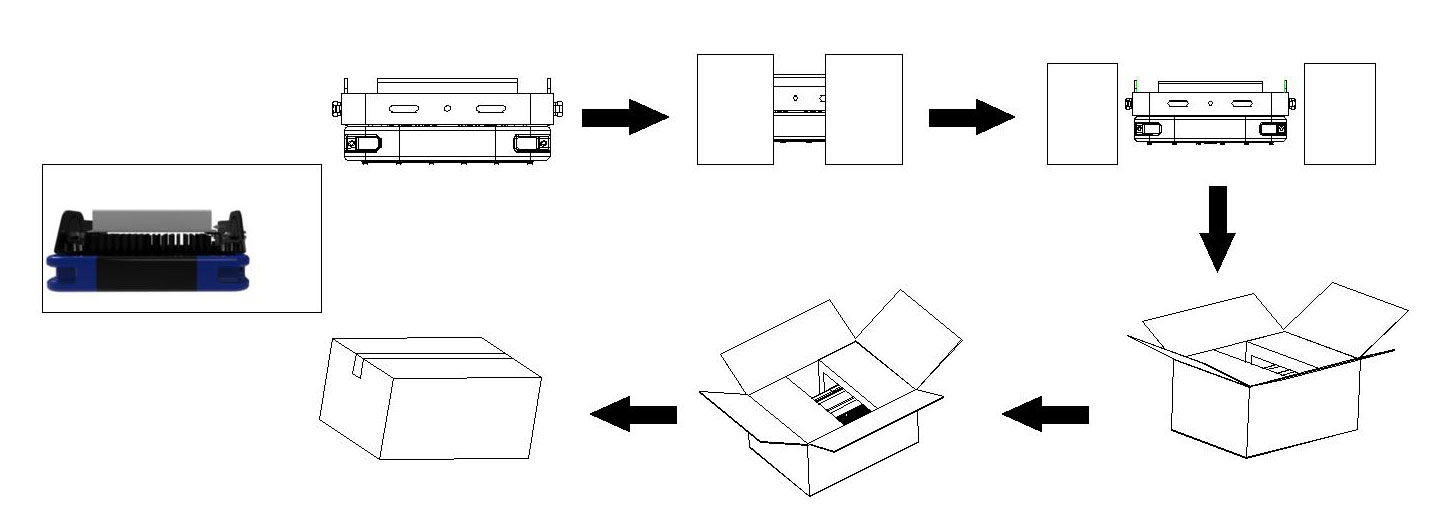

Packaging:

200W
