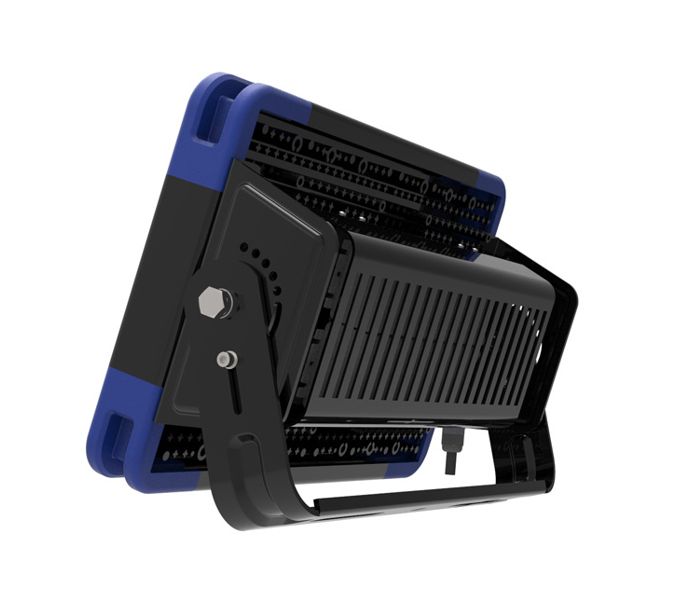

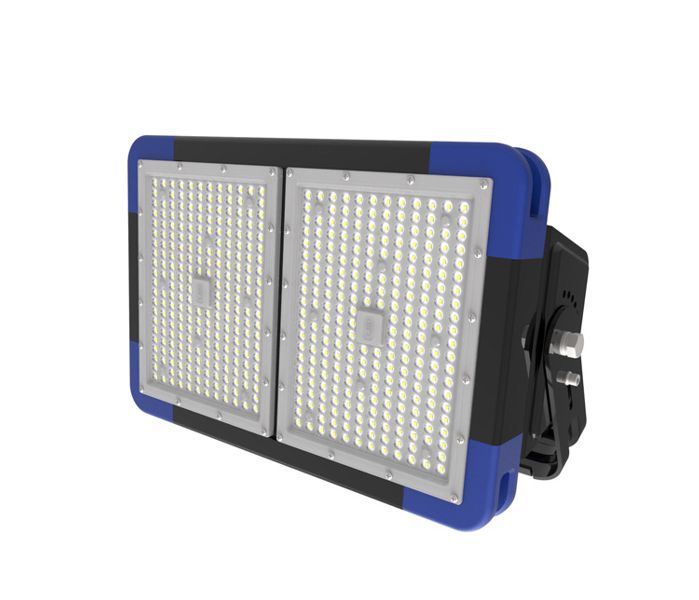

Robust LED High Mast 360W

Model： HM01-0360-NP-CC80

Power： Mean Well

Luminous flux： 50400LM

Lighting Effects： 140 LM/W

LED Brand： Luminous 3030

Input Voltage(V)： AC95-305V

LED Qty： 560 PCS

Beam Angles： 10°,25°,45°,60°,90°

IP Class： IP66

Inquire Now Next Product

description

Application:

.Airports

.Shipping Docks

.Power Plants

.Sport Fields

.Stadiums

.Shopping Centers

.Expressways

.Industrial

.Facilities

.Railway Terminals

.Commercial Parking Lots.

.Port

.Wharf

.Tunnel

Paramenter:

Output Power:	360W
Frequently	50/60Hz
Power factor:	>0.95
LED Qty/ Brands :	560 pcs /Philips SMD3030
Lighting Effects:	140LM/W(±5%)
Color Temperature(CCT):	2700-6500K
Color Rendering Index(CRI):	>80
Operation Temperature:	-30~+45℃
IP Class:	IP66
Wattage:	50000Hrs
Input wires:	Brown wire(L)
	Yellow wire(G)
	Green wire(N)
N.W./G.W.:	13.0kg / 14.0kg
Carton Dimension:	600mm415mm245mm

Installation:

Robust LED high mast 360W

Installation requirement:

1. Please prepare two sets of bolts to install the light;

2. Power off before installation;

3. Make sure the installed surface can endure the weight of light, and fix the light on the installed surface securely(according to installation diagram);

4. Connect light wire to power wire, seal the joint with insulation.

Drawing:

Robust LED high mast 360W
