200W

Model: HM01-0200-NX-CC80

Power :Mean well

Lighting Effects:140 LM/W

Luminous flux:27000LM

LED Brands: Philips 3030

Input Voltages(V): AC 95-305V

LED numbers:280PCS

Qty/Ctn : 1 PCS

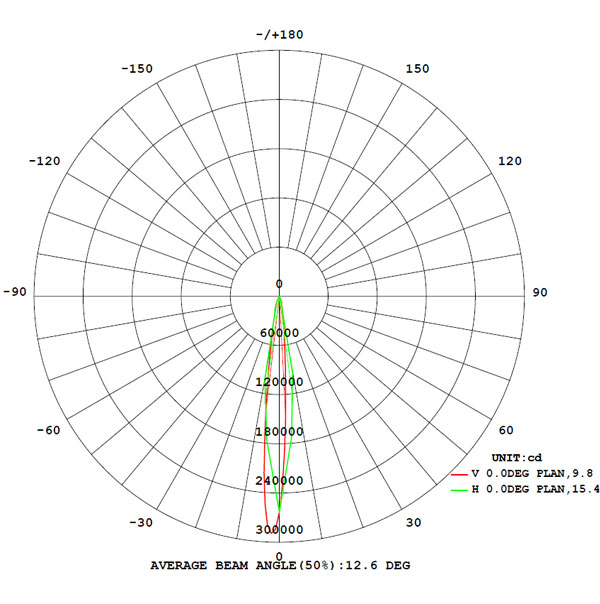

Beam angle: 10°,25°,45°,60°,90°

IP class: IP66

Carton Dimension: 405mm*415mm*245mm

N.W./G.W. :7.65KG/8.15KG

Inquire Now None

description

Application:

1.Airports

2.Shipping Docks

3.Power Plants

4.Sport Fields

5.Stadiums

6.Shopping Centers

7.Expressways

8.Industrial

9.Facilities

10.Railway Terminals

11.Commercial Parking Lots.

12.Port

13.Wharf

14.Tunnel

Exponent:

Output Power:	200W
Frequently	50/60Hz
Power factor:	>0.95
LED Qty/ Brands :	280 pcs /Philips SMD3030
Lighting Effects:	140LM/W(±5%)
Color Temperature(CCT):	2700-6500K
Color Rendering Index(CRI):	>80
Operation Temperature:	-30~+45℃
IP Class:	IP66
Wattage:	50000Hr
Input wires:	Brown wire(L)
	Yellow wire(G)
	Green wire (N)
N.W./G.W.:	7.65kg / 8.15kg
Carton Dimension:	405mm415mm245mm

Installation:

Installation requirement:

1. Please prepare two sets of bolts to install the light;

2. Power off before installation;

3. Make sure the installed surface can endure the weight of light, and fix the light on the installed surface securely(according to installation diagram);

4. Connect light wire to power wire, seal the joint with insulation.

Drawing
